Features

• Added internal ExpressLRS module support
• Updated main board design from STM32F207 to STM32F407
• Improved USB-C QC 3.0 Charging
• Precision hall-effect gimbals as standard
• EdgeTX operating system installed from the factory

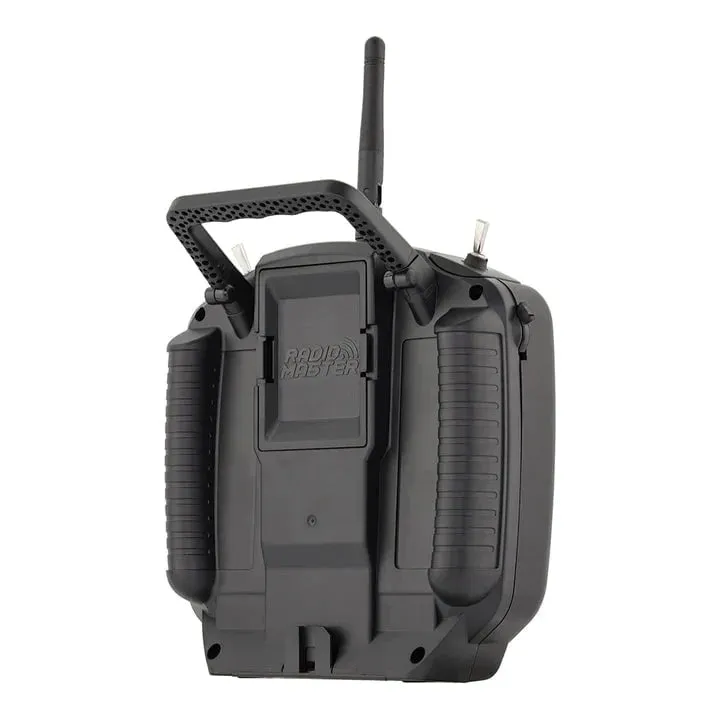

• Updated rear case with comfortable grips
• Improved S1 / S2 slider grip
• SD Card included
• Provide M1 and M2 modes

Specifications

• Size: 170*159*108mm
• Weight: 363g
• Frequency: 2.400GHZ-2.480GHZ
• RF Chip: ExpressLRS (ELRS)
• Working Current: [email protected]
• Voltage Range: 6.6-8.4v DC
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
• Channels: Up to 16 (depending on the receiver)
• Display: 128*64 Monochrome LCD display
• Gimbal: High precision hall gimbals
• External module: JR/FrSKY/Crossfire compatible
• Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
• USB Charging: QC3 USB-C
• SD Card: Included

Includes

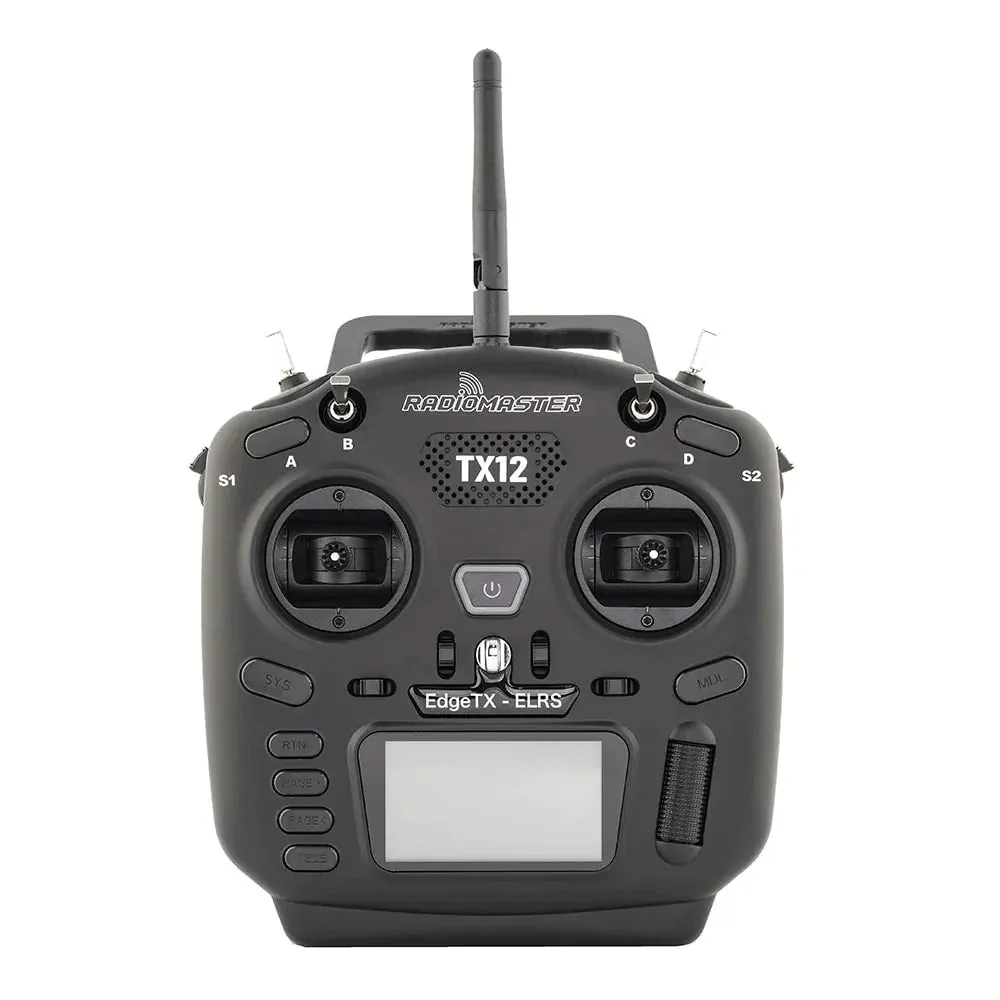

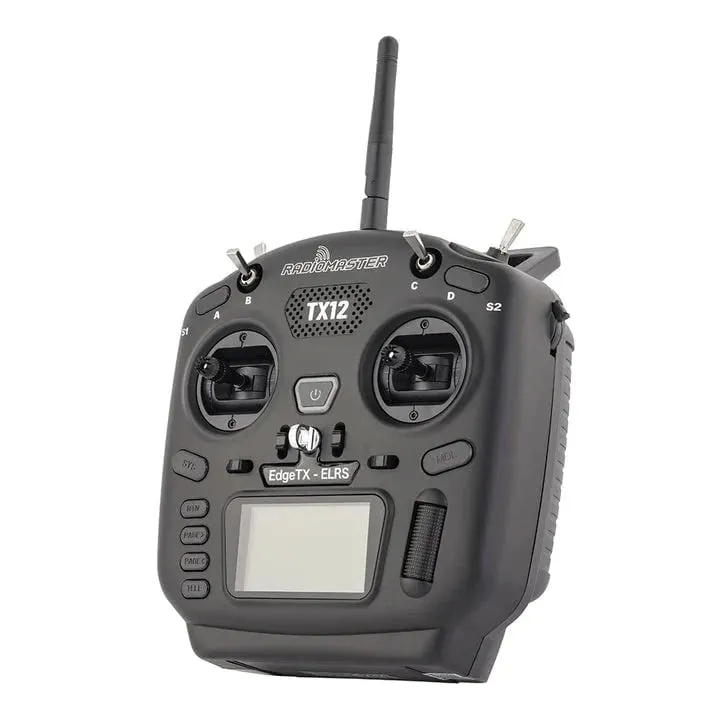

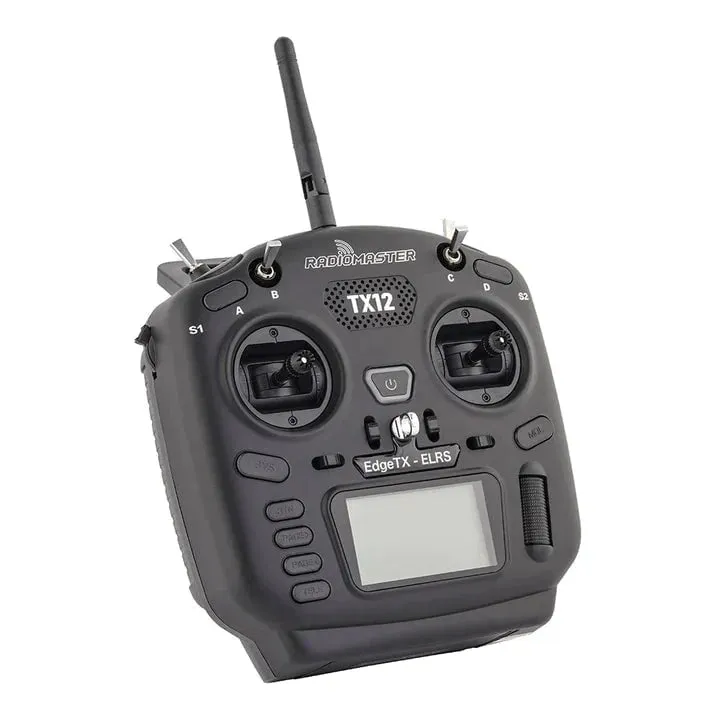

• 1x RadioMaster TX12 MKII Multi-Protocol EdgeTX 2.4GHz RC Transmitter - ELRS
• 1x Antenna
• 1x USB-C Cable
• 1x Quick Start Guide
• 1x Sticker
