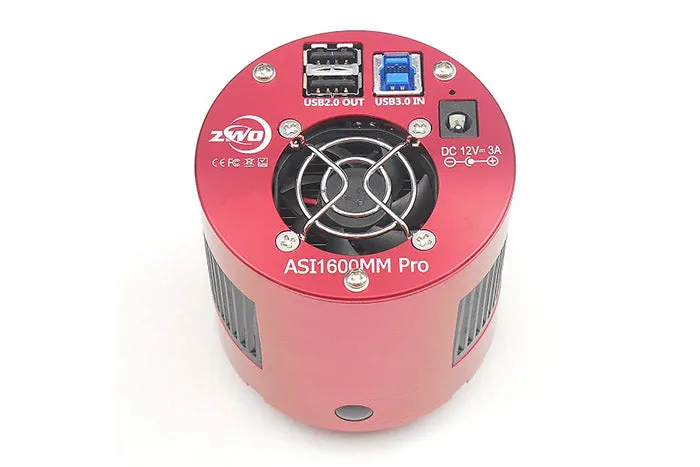

ASI1600MM Pro Cooled Monochrome Camera
Versatile | Compact | Exceptional Image Quality
The ZWO ASI1600MM Pro is a Micro Four Thirds camera packed with features that help you produce world-class images.
ASI1600MM Pro Cooled Monochrome Camera Features
- Exceptional noise reduction technology and video capabilities.
- The 1600 Pro is ideal for photographing: Nebulae, galaxies, planets, solar images, lunar images, and more.
- USB 3.0 Port allows your camera to run at 14.7 fps at base through its 5 GB bandwidth.
- USB 2.0 Hub attaches various accessories for better cable management.
- Two-stage cooling system for long exposure shots.
ASI1600 Image Quality
The ZWO ASI1600 has a built-in 12-bit ADC but can provide over 12 stops of dynamic range! Which means it can capture a wider tonal range a KAF-8300 sensor. The Camera inherently has a much lower read noise, at a 0 gain setting and will further decrease the higher the gain.
It also includes an upgraded PCB board with a 256MB DDR3 memory buffer. Slow data transmission can cause amp-glow around your image, so the DDR memory buffer takes care of that for you.
Most Adaptable Camera Body
Most ZWO cooled cameras have a short back focus, making them very adaptable to almost any telescope system. The ZWO ASI 1600 has a back focus of 6.5 mm! Check the for the best configurations.

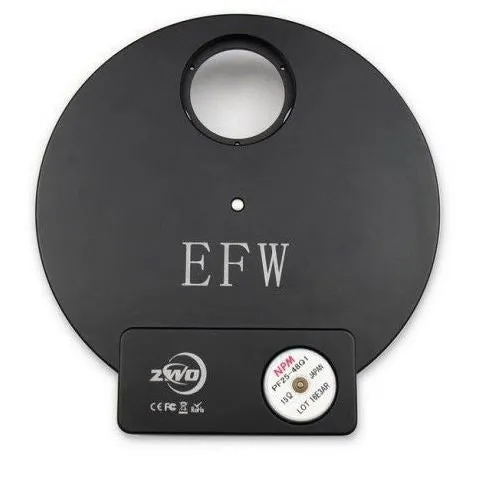

8 Position Filter Wheel

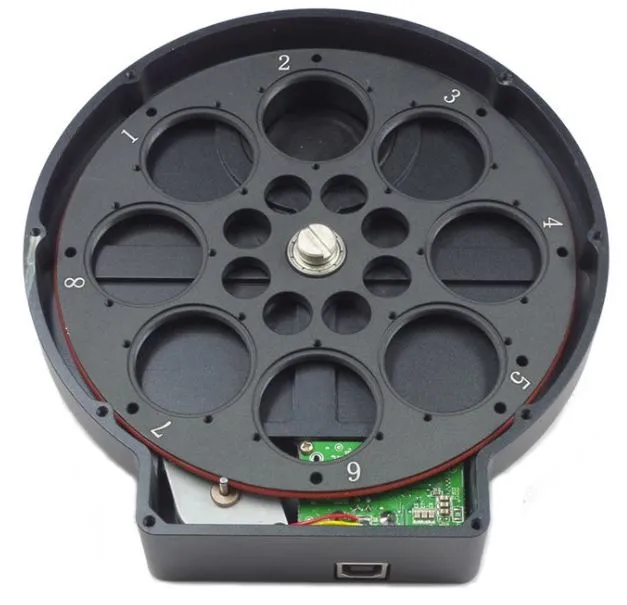

The ZWO EFW8 can hold up to eight 1.25-inch mounted or 31 mm unmounted filters. The 31 mm filters are held in place with included set screws and washers.
The EFW8 body is CNC machined from aircraft-grade aluminum and is black anodized. It is sturdy and reliable, yet weighs just 14 ounces and is 20 mm thick! Inside, an NPM stepper motor is used to rotate the carousel in any direction. The EFW8 is powered via USB and includes a cable that can be plugged into the USB2.0 hub of ZWO cooled cameras.

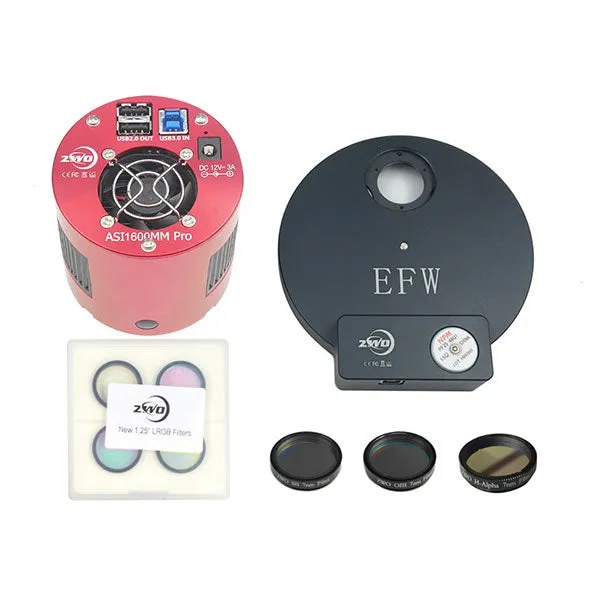

Complete Filter Set

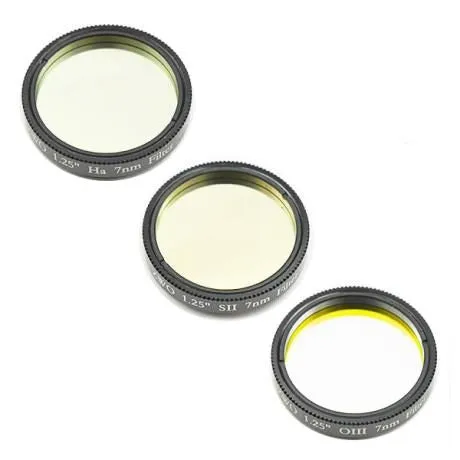

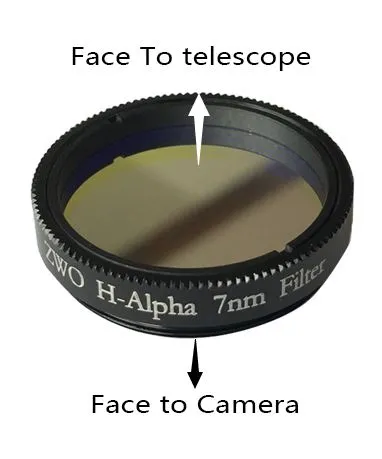

Switch between each filter to gather colorful variations of light resulting in different vivid images! Every ZWO 1600 Kit comes with a set of LRB filters and a complete set of 7-nanometer narrowband filters (Ha, SII and OIII). Finely polished down to an optical accuracy of one-fourth wave, the filters provide zero apparent optical distortion from the filters. To avoid vignetting, use this kit with optical systems no faster than f/8.
Important Notice Regarding Power Supply
Please be aware that this cooled ZWO camera DOES NOT come with a power supply, but one is required to run cooler on the camera. We recommend picking up the or choose from one of the many we offer.
- Perfect for Deep Space Astrophotography and Planetary Imaging.
- 16 MP Micro Four Thirds Sensor.
- Thermo Electric Cooling Down to Minus 40 Celsius Degrees Below Ambient.
- Shoots 4k Video at 36 FPS and 320 x 240 at 192.4 FPS.
Camera Bag
ASI Camera Body
2 m USB3.0 Cable
ASI Quick Guide
M42 21 mm Extender
M42-M48 16.5 mm Adapter
1.25 " Nose Piece
1.25" Cover
M42-M48 0mm Adapter
0.5m USB 2.0 Cable x2
M42-1.25" 0mm Adapter
M42 11mm female to Female Adapter
Male M42 to Male M42 Adapter
EFW 1.25/31 mm

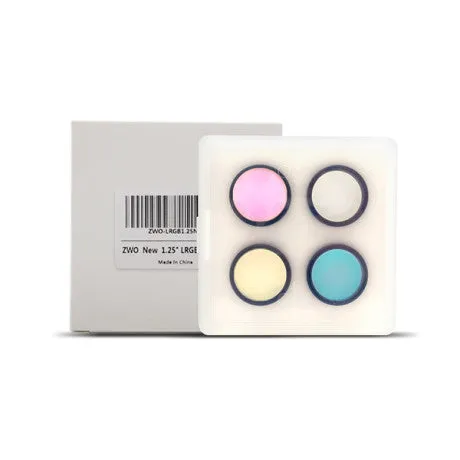

1.25 LRGB Set
1.25" Narrowband Set
1.25" Holder
Filter Masks
Phillips screwdriver
M2 screws
